The Great Hot Gas Mix-up
By Christoper Monday
In the meticulous world of HVAC engineering and testing, a common mix-up has been causing unnecessary complications for both veterans and newcomers. We’re talking about the confusion between two similarly named but fundamentally different concepts: Hot Gas Bypass and Hot Gas Reheat.
Picture this: you’re attending an industry conference, and the speaker mentions “hot gas systems.” You notice colleagues nodding along, but are they all thinking about the same process? This isn’t just a matter of semantics; confusing these two concepts can lead to missteps in system design, troubleshooting errors, and flawed test procedures.
Let’s delve into these two processes, highlight their differences, and understand why they’re so often mistaken for one another.
Hot Gas Bypass
Function and Operation
Hot Gas Bypass is a method used for capacity control in HVAC and refrigeration systems. Its main purpose is to prevent the compressor from cycling on and off excessively when the cooling load drops below the compressor’s minimum capacity. Here’s how it works:
- Reduced Cooling Demand: When the space requires less cooling, the system needs to adjust to avoid overcooling.

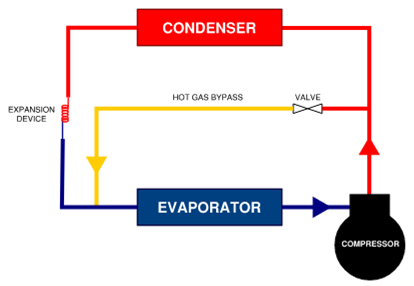

- Bypassing the Condenser: Hot refrigerant gas from the compressor discharge is diverted before it reaches the condenser and expansion device.
- Reintroduction into the System: This hot gas is then reintroduced into the suction line or directly into the evaporator, reducing the refrigeration effect without stopping the compressor.
Applications
- Chillers (both water-cooled and air-cooled)
- Systems with variable loads like data centers or industrial processes
- Environments requiring precise temperature control
Hot Gas Reheat
While Hot Gas Bypass manages capacity, Hot Gas Reheat addresses a different challenge: maintaining comfort by controlling humidity without overcooling the space.
Function and Operation
Hot Gas Reheat allows an HVAC system to dehumidify indoor air efficiently. Here’s the process:
- Humid Air Enters: Warm, moist air is drawn into the system.
- Dehumidification: The air passes over the evaporator coil, cooling it to the dew point. Moisture condenses out, effectively reducing humidity.
- Avoiding Overcooling: Without intervention, the air would be too cold when supplied back into the space if there is not a cooling demand.

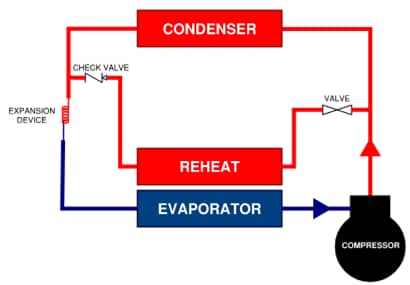

- Reheating the Air: Hot refrigerant gas from the compressor discharge is diverted to a reheat coil. This warms the dehumidified air to a comfortable temperature before it is distributed.
- Comfortable Output: The result is air that’s both dehumidified and at a neutral temperature, maintaining comfort without overcooling.
Applications
- Locker Rooms and Shower Areas: To remove excess moisture and prevent mold growth.
- Gymnasiums: To maintain comfort and control humidity during activities.
- Music Rooms: To protect instruments from humidity-related damage.
- Any space where humidity control is crucial without lowering the temperature excessively.
Why the Confusion?
So, why do these two distinct processes often get mixed up?
- Similar Terminology: Both involve redirecting (bypassing) the refrigerant.
- Use of Hot Refrigerant Gas: Each process utilizes hot refrigerant gas from the compressor discharge, though for different purposes.
- System Optimization Goals: Both aim to enhance system performance, whether by controlling capacity or indoor air conditions.
Despite these overlaps, their functions are fundamentally different. Hot Gas Bypass focuses on capacity control to prevent compressor cycling, while Hot Gas Reheat manages humidity levels without overcooling the space.
The Modern Twist: Variable Speed Compressors
With technological advancements, Variable Speed Compressors have become more prevalent, offering precise control over cooling capacity by adjusting the compressor’s speed.
Impact on Hot Gas Bypass
- Reduced Necessity: In many small to medium-sized systems, the need for Hot Gas Bypass is diminishing because Variable Speed Compressors can efficiently modulate capacity.
- Enhanced Energy Efficiency: These compressors match output to demand without the energy losses associated with bypassing hot gas.
- Continued Relevance: Hot Gas Bypass remains valuable in large industrial systems, chillers, and specialized applications where Variable Speed Compressors may not be practical or cost-effective.
The Importance of Precision in Terminology
In HVAC, precision extends beyond technical specifications to the language we use. Confusing Hot Gas Bypass with Hot Gas Reheat can lead to:
- Design Errors: Misapplying one system in place of the other can result in ineffective HVAC solutions.
- Troubleshooting Mistakes: Technicians might misdiagnose issues if they’re unclear about which process is in use.
- Training Challenges: Educating new professionals becomes more complicated when terminology isn’t used accurately.
Case Study: Correcting a Misapplied Functional Performance Test
A commissioning team was tasked with verifying the performance of HVAC units in a commercial building. The units were equipped with Hot Gas Bypass (HGBP) systems for capacity control. An experienced commissioning agent, accustomed to Hot Gas Reheat (HGRH) systems, prepared the Functional Performance Test (FPT) based on the HGRH Sequence of Operation (SOO).
The Issue
Upon review, the commissioning manager noticed that the FPT included procedures relevant to HGRH systems, such as testing humidity control functions and reheating capabilities, which were not applicable to the HGBP-equipped units. This mismatch would lead to improper testing and inaccurate conclusions about the system’s performance.
Manager’s Intervention
The manager addressed the oversight by:
- Clarifying System Differences
- Hot Gas Bypass (HGBP): Used for capacity control to prevent compressor short cycling during low cooling demand by diverting hot refrigerant gas back to the evaporator or suction line.
- Hot Gas Reheat (HGRH): Used for humidity control by reheating dehumidified air before it is supplied to the space, preventing overcooling.
- Revising the FPT
- Focus on Capacity Control: Adjust the FPT to test the HGBP function, ensuring the compressor operates efficiently during varying load conditions.
- Eliminate Irrelevant Tests: Remove procedures related to humidity control and reheating that do not apply to HGBP systems.
- Teaching Proper Testing Methods for HGBP
- Simulate Low Load Conditions: Create scenarios where cooling demand is minimal to trigger the HGBP function.
- Verify Bypass Valve Operation: Check that the hot gas bypass valve opens at the correct setpoints and modulates properly.
- Monitor System Stability: Ensure the system maintains appropriate temperatures and pressures without short cycling or instability.
Key Lessons Learned
- Importance of Accurate SOO Interpretation: Always verify the equipment’s SOO to develop appropriate testing procedures.
- Avoid Assumptions Based on Familiarity: Recognize that similar terminology (e.g., “hot gas”) does not imply identical functions.
- Tailored Testing Procedures: Develop FPTs that align precisely with the system’s actual operation and capabilities.
- Effective Communication: Encourage open dialogue within the team to clarify any uncertainties about system functions.
Outcome
With the revised FPT, the commissioning team accurately tested the HGBP systems, ensuring they operated as intended. The process highlighted the critical role of precise understanding and application of system-specific procedures in commissioning.
Embracing Clarity
As HVAC technology evolves, clear communication becomes increasingly vital. By distinguishing between Hot Gas Bypass and Hot Gas Reheat, we promote better system design, more effective troubleshooting, and enhanced efficiency.
The next time someone mentions “that hot gas system,” take a moment to clarify. Are they referring to capacity control or humidity management? Is it about preventing compressor cycling or ensuring comfortable air temperatures while dehumidifying? Asking these questions not only fosters understanding but also contributes to the advancement of best practices in our field.
In the dynamic world of HVAC, every component and process plays a unique role. Let’s give Hot Gas Bypass and Hot Gas Reheat the distinct recognition they deserve, ensuring our systems, and our conversations, operate smoothly.
