HVAC (Heating, Ventilation, and Air Conditioning) systems are critical to the comfort, energy efficiency, and functionality of modern buildings. Ensuring these systems operate as designed requires a rigorous and systematic process known as HVAC commissioning. This process verifies that HVAC systems perform efficiently, meet design specifications, and support the long-term operational goals of a building. In this article, we will explore how HVAC commissioning works, its essential steps, and the significant benefits it provides. We will also feature the Alcon Labs Fort Worth North Manufacturing Building as a case study to illustrate how Engineered Air Balance (EAB) applied HVAC commissioning to optimize system performance in a complex facility.
What is HVAC Commissioning?
HVAC commissioning is a quality assurance process that ensures a building’s HVAC systems are designed, installed, and function according to the owner’s project requirements (OPR) and design specifications. It involves detailed testing, verification, and adjustments during every phase of a building project—from design to post-occupancy.
The purpose of HVAC commissioning is to identify and resolve potential issues early, optimize system performance, and ensure that the building operates efficiently and reliably. This process is integral to achieving energy efficiency, regulatory compliance, and occupant comfort.
Why is HVAC Commissioning Essential?
1. Improved System Efficiency
Commissioning ensures that HVAC systems operate at peak efficiency, reducing energy consumption and lowering operating costs. By addressing inefficiencies during installation and testing, commissioning helps prevent energy waste and ensures systems perform as intended.
2. Enhanced Occupant Comfort
Properly commissioned HVAC systems provide consistent indoor temperature, humidity, and air quality, creating a comfortable environment for occupants. This is particularly important in sensitive environments like laboratories, hospitals, and schools.
3. Early Detection of Issues
Commissioning helps identify and resolve common HVAC problems, such as improper airflow, faulty sensor calibration, and system integration issues. Addressing these problems early reduces the risk of costly repairs and operational disruptions.
4. Support for Compliance
HVAC commissioning ensures systems meet local building codes, industry standards, and sustainability requirements. This is critical for certifications like LEED (Leadership in Energy and Environmental Design).
5. Long-Term Reliability
By verifying that HVAC systems are installed and functioning correctly, commissioning enhances long-term reliability, minimizes maintenance needs, and extends the lifespan of equipment.
Key Steps in HVAC Commissioning
HVAC commissioning is a multi-phase process that begins in the design stage and continues through post-occupancy. Below are the key steps involved:
1. Design Phase Review
Commissioning starts with a thorough review of design documents to ensure alignment with the owner’s project requirements and industry standards. This step helps identify potential issues before construction begins, saving time and money.
Activities Include:
- Evaluating design drawings and specifications.
- Ensuring systems meet performance goals and energy efficiency targets.
- Developing a commissioning plan to guide the process.
2. Construction Phase Verification
During construction, the commissioning team verifies that HVAC components are installed correctly and according to design specifications. This step helps prevent installation errors that could compromise system performance.
Activities Include:
- Inspecting equipment installation and placement.
- Reviewing contractor submittals for compliance with specifications.
- Coordinating with contractors to resolve any discrepancies.
3. Functional Performance Testing
Functional performance testing evaluates how HVAC systems operate under various conditions. This step verifies that systems perform as intended and interact seamlessly with other building systems.
Activities Include:
- Testing HVAC components like fans, chillers, and air handlers.
- Simulating operational scenarios, including peak loads and emergencies.
- Identifying and resolving issues such as calibration errors and airflow inconsistencies.
4. Final Adjustments and Optimization
After testing, the commissioning team makes final adjustments to optimize system performance. This includes balancing airflow, calibrating sensors, and fine-tuning control systems.
5. Post-Occupancy Support
Commissioning doesn’t end once the building is occupied. Post-occupancy support ensures systems continue to perform reliably and meet operational goals.
Activities Include:
- Conducting follow-up inspections and performance reviews.
- Providing training for operations and maintenance staff.
- Addressing any issues that arise during the warranty period.
Identifying and Resolving Common HVAC Issues
Commissioning is crucial for identifying and addressing common HVAC issues, such as:
- Improper Airflow: Ensuring air distribution meets design specifications is critical for maintaining consistent temperature and air quality.
- Sensor Calibration Errors: Accurate sensors are essential for controlling HVAC systems. Commissioning verifies that all sensors are calibrated and functioning correctly.
- Energy Inefficiencies: Commissioning identifies and corrects energy-wasting issues, such as oversized equipment or poorly balanced systems.
The Role of a Commissioning Plan
A commissioning plan is a comprehensive document that guides the commissioning process. It outlines the scope of work, performance metrics, testing procedures, and roles of each stakeholder. The plan ensures clear communication and collaboration between contractors, engineers, and building owners, contributing to a smooth and efficient commissioning process.
Case Study: Alcon Labs Fort Worth North Manufacturing Building

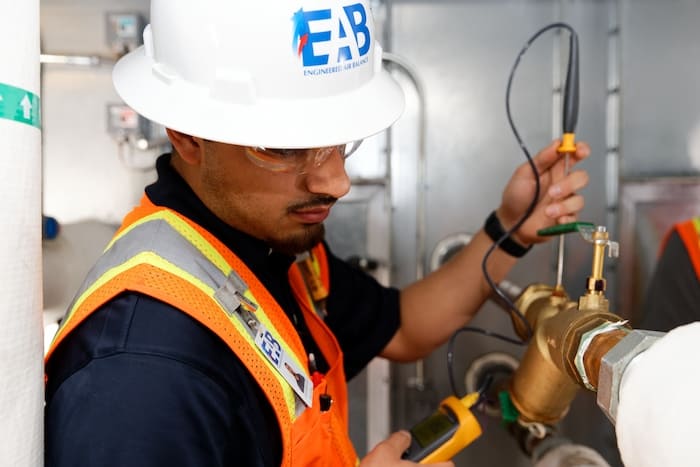

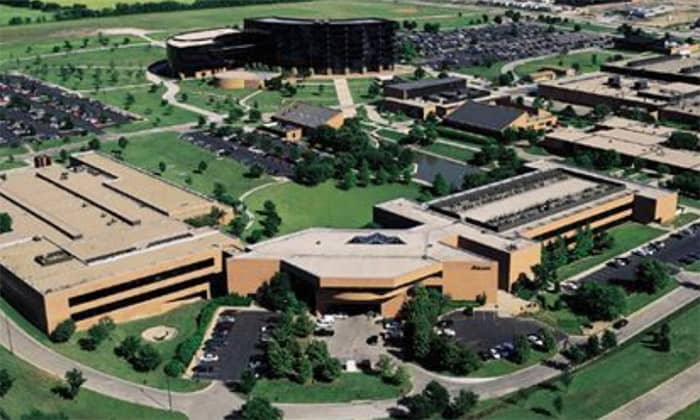

The Alcon Labs Fort Worth North Manufacturing Building is a prime example of how HVAC commissioning can optimize system performance in a complex facility. As a global leader in eye care, Alcon requires a state-of-the-art facility to support its manufacturing and research operations. Precision environmental control was essential to maintain product quality and regulatory compliance.
Challenges
The project presented several challenges:
- Complex Systems: The facility housed advanced HVAC systems requiring precise temperature and humidity control to meet strict environmental standards.
- Seamless Integration: HVAC systems needed to integrate with building automation systems (BAS) for efficient operation.
- Operational Efficiency: The facility aimed to minimize energy consumption while maintaining consistent performance.
EAB’s Commissioning Efforts
EAB provided comprehensive commissioning services to address these challenges:
1. Design Review
- Evaluated design documents to ensure alignment with operational and environmental requirements.
- Identified opportunities to optimize system performance.
2. Construction

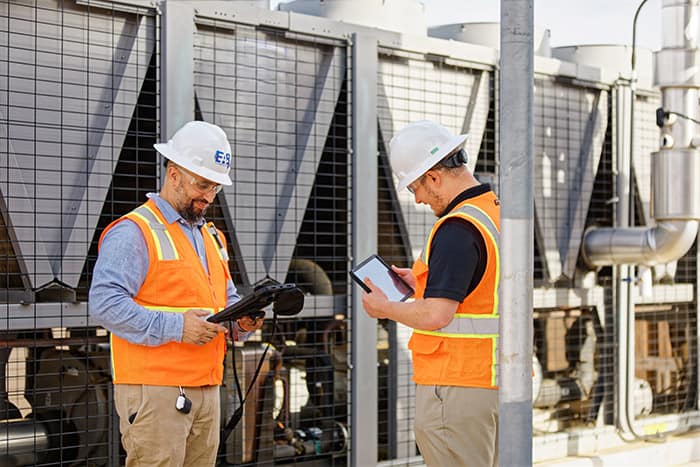

- Conducted on-site inspections to verify proper installation of HVAC components.
- Collaborated with contractors to resolve installation issues.
3. Functional Performance Testing
- Evaluate HVAC systems under various conditions to verify performance and reliability.
- Identified and addressed airflow inconsistencies and sensor calibration errors.
4. System Optimization
- Balanced airflow and fine-tuned control systems to enhance energy efficiency.
- Validated integration with BAS to ensure seamless operation.
Results and Impact
EAB’s commissioning efforts delivered significant benefits for the Alcon Labs facility:
- Optimized Performance: HVAC systems operated efficiently, meeting strict environmental and operational requirements.
- Energy Savings: System optimizations reduced energy consumption, contributing to sustainability goals.
- Enhanced Reliability: The facility achieved consistent performance, minimizing downtime and maintenance needs.
This project showcases how HVAC commissioning can transform complex facilities into high-performing, efficient environments.
Benefits of HVAC Commissioning
The benefits of HVAC commissioning extend beyond immediate operational improvements. They include:
- Energy Efficiency: Commissioning reduces energy waste, lowering utility costs and supporting environmental goals.
- Regulatory Compliance: Properly commissioned systems meet building codes and sustainability certifications, such as LEED.
- Cost Savings: Early issue identification prevents costly repairs and operational disruptions.
- Occupant Satisfaction: Reliable HVAC systems enhance comfort and productivity for building occupants.
- Long-Term Reliability: Comprehensive testing and optimization ensure systems perform consistently over time.
Investing in HVAC Commissioning
HVAC commissioning is essential for ensuring that heating, ventilation, and air conditioning systems operate efficiently, reliably, and in alignment with design specifications. From improving energy efficiency to enhancing occupant comfort, commissioning delivers long-term value for building owners and operators.
The Alcon Labs Fort Worth North Manufacturing Building is a testament to the transformative power of HVAC commissioning. EAB’s expertise ensured the facility met its operational goals, providing a reliable and efficient environment for advanced manufacturing and research.
If you’re planning a new construction project or upgrading an existing facility, HVAC commissioning is an investment in success. Contact Engineered Air Balance (EAB) today to learn more about our comprehensive commissioning services and discover how we can help optimize your building’s HVAC systems. Partner with EAB today to achieve peak performance and operational excellence.
